Digital Ultrasonic Spirometer with USB

SpiroSonic FLO

Complete solution for PC-based ultrasonic spirometry

AccuratePureFlow digital ultrasonic technology for improved accuracy

Easy to use – Convenient operation with Uscom’s SpiroReporter PC software

Easy to disinfect – No moving parts, single continuous flow tube

SpiroSonic FLO

Ultrasonic spirometry partnered with SpiroReporter software for a complete PC solution.

SpiroSonic FLO 1

Meet SpiroSonic FLO

High-fidelity USB spirometer

SpiroSonic FLO is a high fidelity ultrasonic spirometer for pulmonary function assessment.

Coupled with the SpiroReporter software, SpiroSonic FLO is a powerful tool for screening COPD and monitoring asthma and other chronic pulmonary diseases.

Based on half-duplex single path digital ultrasonic flow measurement, SpiroSonic FLO is the result of years of research, technological development and innovation.

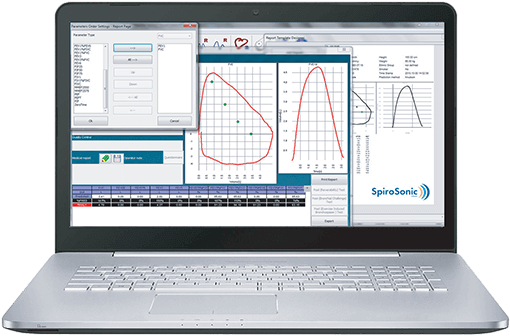

SpiroReporter pc software

Full-featured spirometry platform

The SpiroSonic FLO directly couples with the PC based proprietary SpiroReporter software. SpiroReporter is an all-inclusive spirometry software solution that provides archiving, analysis, trend analysis, reporting, and much more.

SpiroSonic FLO 2
SpiroSonic FLO 3

Less cost per measure

Automatic calibration, simple disinfection

Designed for immediate use and simple operation, SpiroSonic FLO automatically calibrates itself before each measurement.

The device consists of no moving parts and a continuous flow tube, making disinfection very effective and easy.

SpiroSonic FLO is manufactured with high quality, easy to disinfect, durable materials, no moving parts and no proprietary disposables.

For young and old

Intuitive and effective

SpiroSonic FLO’s extremely low flow resistance makes it suitable for diagnosing children, elderly and sick patients.

SpiroReporter’s interactive patient instructions and immediate feedback helps the patient and the practitioner to optimize the spirometry maneuver, leading to easier measurements and better results.

SpiroSonic FLO 4

SpiroSonic FLO

Specifications

Communication Connection to PC via USB
USB connector type Standard USB 2.0 Type A
Dimensions of the device 28 × 61 × 94 mm
Dimensions of the flow tube d30×165 mm
Weight 122 g
Level of electrical protection BF
Protection against water ingress IP32
Operating and storage conditions Temperature: 10 – 40°C
Relative humidity: 5 – 95% without condensation
Dimensions of the packaging 260 × 190 × 90 mm
Weight of packaging 770 g



Flow/volume measurement system PureFlow technology
Measurement principle PureFlow ultrasonic multiple-path
Maximum volume ± 20 L
Flow range ± 14 L/s
Volume accuracy ± 2.5% or 50 mL whichever is greater
Flow accuracy ± 2.5 % or 50 mL/s whichever is greater
Sample rate 100 Hz
Expiratory impedance at 14 L/s flow < 0,15 kPa/L/s
Standard pulmonary function parameters AEX, ELA, EOTV05, EOTV1, ERV, EV, EV%FVC, FEF25, FEF50, FEF50/FIF50, FEF50%FIF50, FEF75, FET, FEV05, FEV05%FVC, FEV075, FEV075/FVC, FEV1, FEV1%FEV6, FEV1%FIVC, FEV1%FVC, FEV1%VC, FEV3, FEV3%FVC, FEV6, FEV1/FVC, FIF25, FIF50, FIF75, FIT, FIV1, FIV1%FIVC, FIVC, FVC, IC, IRV, IVC, MMEF2550, MMEF2575, MMEF5075, MVV, PEF, PEFT, PIF, RR,TE, TE/TI, TI, tR, TV, TV/TI, VC, VE, VPEF, ZeroTime

(Parameters are evaluated by SpiroReporter)

Benefits

Why choose SpiroSonic FLO?

Uscom SpiroSonic FLO delivers accurate spirometry through advanced ultrasonic digital technology. Its user-friendly interface and extremely low resistance to flow makes it suitable for children, elderly and sick patients with asthma, COPD and occupational lung diseases.

No daily external calibration required – Automatic internal calibration.

Extremely low flow resistance – SpiroSonic FLO is suitable for children, elderly and sick patients.

Automated interpretation and diagnostic decision support – SpiroReporter assists you in making the correct diagnosis.

v

Interactive patient instructions – Feedback to assist the patient/doctor to optimize the spirometry maneuver.

No proprietary disposables – Less cost per patient, economical operation.

Digital connectivity – SpiroSonic FLO connects to PCs via USB.

No moving parts – SpiroSonic FLO is a robust device without any moving parts which makes it reliable and durable.

Disinfectable – Thanks to the  continous flow tube the device is fully disinfectable to prevent cross-contamination.

Buy

SpiroSonic FLO

USB multi-path digital ultrasonic spirometer

Package Contents

  • SpiroSonic FLO ultrasonic spirometer
  • SpiroReporter spirometry PC software CD with User Manual
  • Sample Bacterial filter
  • Textile bag for carrying
  • Plugs for disinfection
  • Calibration Certificate

Did not find what you were looking for? Check out our custom spirometer development services!
